| Scotch - Yoke type |
| No metal to metal
touch |
| ISO 5211, DIN
3337 |
| Anodized
surface & double coated interior |
|
|
|
| Item |
AD40 |
AD50 |
AD65 |
AD80 |
AD100 |
AD140 |
AD200 |
AD200D |
AD250D |
AD350D |
AD550D |
| Operating Type |
R&P |
Scotch - Yoke |
Piston |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4 ~ 7kg/? |
| Rotating Angle |
90 ? ±3 ? |
| Operating
Temperature |
-10 ~ 60 ℃ |
| Weight (kg) |
0.7 |
1.3 |
2.2 |
3.9 |
7.4 |
17.6 |
63 |
89 |
104 |
456 |
600 |

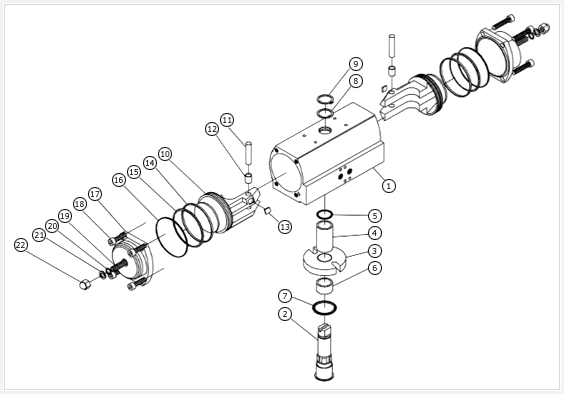

| No. |
Part Name |
Materials |
No. |
Part Name |
Materials |
| 1 |
Body |
Aluminum Alloy |
12 |
Guide Bushing |
Polyphithalamide |
| 2 |
Drive Shaft |
Steel Alloy (Nickel plated) |
13 |
Dynamic Pad |
Polyphithalamide |
| 3 |
Crank |
Steel Alloy (Nickel plated) |
14 |
Piston Guide |
Polyphithalamide |
| 4 |
Bushing |
Acetyl |
15 |
O-ring (Guide) |
NBR |
| 5 |
O-Ring |
NBR |
16 |
O-ring (Cover) |
NBR |
| 6 |
Bushing |
Acetyl |
17 |
Cover |
Aluminum Alloy |
| 7 |
Washer |
Polyphithalamide |
18 |
Bolt |
Stainless Steel |
| 8 |
Washer |
Polyphithalamide |
19 |
Adjust Bolt |
Stainless Steel |
| 9 |
C-Ring |
Stainless Steel |
20 |
Adjust O-ring |
NBR |
| 10 |
Piston |
Aluminum Alloy |
21 |
Adjust Washer |
Stainless Steel |
| 11 |
Piston Pen |
Steel Alloy (Nickel plated) |
22 |
Adjust Nut |
Stainless Steel |
|
| |
 |
| Model |
Angle |
4bar |
5bar |
6bar |
 |
Model |
Angle |
4bar |
5bar |
6bar |
| AD40 |
0 ?
45 ?
90 ? |
6
6
6 |
9
9
9 |
11
11
11 |
AD80 |
0 ?
45 ?
90 ? |
102
84
140 |
128
105
163 |
153
125
186 |
| AD50 |
0 ?
45 ?
90 ? |
25
18
27 |
30
22
33 |
35
27
45 |
AD100 |
0 ?
45 ?
90 ? |
270
150
250 |
320
180
316 |
388
221
384 |
| AD65 |
0 ?
45 ?
90 ? |
64
47
71 |
79
60
88 |
96
67
105 |
AD140 |
0 ?
45 ?
90 ? |
690
472
662 |
815
585
727 |
945
693
777 |
|
|
